Key Features
- 10,000 lb rated single-line pull winch for vehicle recovery
- Includes 100 ft of 3/8 in Spydura synthetic rope with a matte aluminum hawse fairlead
- Advanced wireless remote controls winch functions, the clutch, and up to two accessories
- IP68 waterproof and dust-tight construction for severe conditions
- Convertible control pack allows attached or remote-mounted installation options
What's in the Box
- ZEON Platinum 10-S winch
- 100 ft of 3/8 in Spydura synthetic rope
- Matte aluminum hawse fairlead
- Advanced wireless remote
- USB charging cable and car charger adapter
Description

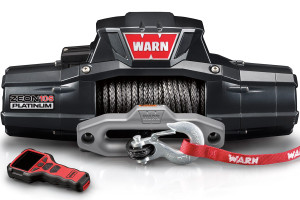

This Warn ZEON Platinum 10-S Winch with Synthetic Rope is a 12-volt recovery winch with a 10,000-pound pulling capacity, high-speed motor package, and advanced wireless control. It is a universal fit winch for Jeep applications that need a compatible mounting point.
Built with a durable aluminum structure, stainless steel fasteners, and a large diameter alloy drum with steel sleeve, this winch is designed for demanding off-road recovery. The advanced remote controls winch-in, winch-out, free-spool operation, the clutch, and up to two accessories while also displaying vehicle battery charge and winch motor temperature.
Item # 92815
A relocation kit is required and sold separately.
Specifications
| Rated Line Pull | 10,000 lb |
| Motor Voltage | 12 V DC |
| Motor Output | 6 hp / 4.5 kW |
| Gear Train | 3-Stage Planetary |
| Gear Ratio | 162:1 |
| Brake Type | Automatic Mechanical Cone |
| Control Type | Advanced Wireless Remote |
| Waterproof Rating | IP68 |
| Rope Length | 100 ft |
| Rope Diameter | 3/8 in |
| Rope Material | Spydura Synthetic Rope |
| Fairlead Type | Matte Aluminum Hawse |
| Mount Type | Fixed Mount |
| Mounting Bolt Pattern | 10.0 in x 4.5 in |
| Dimensions | 24.25 in x 10.5 in x 7.84 in |
| Drum Diameter | 3.15 in |
| Color | Black |
| Finish | Flat Black Powder-Coated |
Warranty
Limited lifetime on mechanical components and 7 years on electrical components. This part is covered by the Warn Warranty.
