Key Features
- Pair pack system with two Gravity PRO6 LED single lights
- Powered by Gravity LED G6 optical inserts
- Patented Infinity Ring housing with adjustable universal ball mount
- Available in Driving, Spot, and Wide-40 beam patterns
- Black aluminum alloy housing with clear lens and IP68 rating

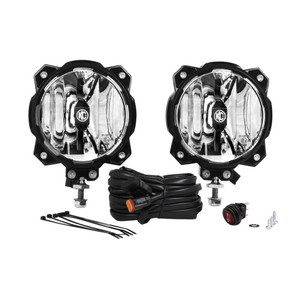

What's in the Box
- 2 Gravity LED PRO6 lights
- 2 KC Pro6 light covers
- Wiring harness with weatherproof connectors
- Illuminated LED light switch
- Mounting hardware
Description
This KC HiLites Gravity PRO6 LED Single Pair Pack System for 2018-2025 Jeep Wrangler JL, 2020-2025 Jeep Gladiator JT includes a pair of 6-inch off-road LED lights with KC's patented Infinity Ring housing and adjustable ball-mount system. It is offered in Driving, Spot, and Wide-40 beam patterns for different lighting needs.
Please select the beam pattern above. The pair pack is designed for flat-surface mounting locations such as A-pillar/ditch, bumper, or overhead applications.
Item # 91303 Driving
Item # 91301 Spot
Item # 91305 Wide-40
Specifications
| Light Technology | LED |
| Size | 6 in. |
| Dimensions | 6 in. W x 7 in. H x 3.125 in. D |
| Material | Aluminum Alloy |
| Color | Black |
| Lens Color | Clear |
| Led Color | White |
| Voltage | 9V-36V |
| Color Temperature | 5000 K |
| Ip Rating | IP68 |
| Beam Pattern | Driving, Spot, Wide-40 |
| Wattage Per Light | 22.56 W / 21.36 W / 21.36 W |
| Total Wattage | 45.12 W / 42.72 W / 42.72 W |
| Amp Draw Per Light | 1.88 A / 1.78 A / 1.78 A |
| Total Amp Draw | 3.76 A / 3.56 A / 3.56 A |
| Lumens Per Light | 2,538 lm / 2,508 lm / 2,508 lm |
| Total Lumens | 5,076 lm / 5,016 lm / 5,016 lm |
| Lux Per Light | 663 lx / 868 lx / 309 lx |
| Total Lux | 1326 lx / 1736 lx / 618 lx |
| Candela Per Light | 66,280 cd / 86,775 cd / 30,891 cd |
| Total Candela | 132,560 cd / 173,550 cd / 61,782 cd |
| Beam Distance | 364 m / 417 m / 249 m |
| Mount Location | A-Pillar / Ditch, Bumper, Overhead |
| Compliance | DOT, SAE J581, ECE R112 (Driving) |
| Quantity | Sold as a pair |
Warranty
This part includes a 5 Year Limited Warranty. This part is covered by the KC HiLites Warranty.
