Key Features
- Rear Performance Elite Series 2.5 smooth body reservoir shock pair
- External reservoirs increase oil and nitrogen capacity
- Dual Speed Compression adjusters allow tool-free high and low-speed compression adjustment
- Application-specific valving for improved damping and control
- Fits stock and lifted Jeep Wrangler JL applications with multiple lift-range options
What's in the Box
- Pair of rear shocks
- Machined 7075 aluminum reservoir mounting hardware
- Offset bottom shock mounts
Description

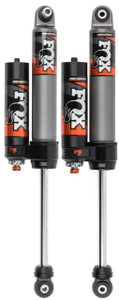

This Fox Shocks Performance Elite Series 2.5 Reservoir Shock Pair (Rear Only) for 2018-2025 Jeep Wrangler JL is a bolt-on rear shock upgrade designed to deliver improved ride quality, damping, and control on and off the pavement. Please select the correct lift range above.
These smooth body shocks use external reservoirs, race-developed high-flow pistons, and application-specific valving. Dual Speed Compression adjusters let you fine-tune high and low-speed compression without tools.
Item # 883-26-053 0-1.5 Inch Lift
Item # 883-26-054 2-3 Inch Lift
Item # 883-26-055 3.5-4.5 Inch Lift
Item # 883-26-056 4.5-6 Inch Lift
Specifications
| Body Diameter | 2.5 in |
| Body Material | 6061-T6 hard-anodized aluminum |
| Body Finish | Hard-anodized |
| Reservoir Type | External reservoir |
| Components Material | Black-anodized CNC-machined 6061-T6 billet aluminum |
| Shaft Diameter | 7/8 in |
| Shaft Material | Hard chrome-plated heat-treated alloy steel |
| Adjuster Type | DSC - Dual Speed Compression |
| Extended Length | 26.600 in |
| Compressed Length | 16.430 in |
| Travel | 10.170 in |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| Quantity | Sold as a pair |
Warranty
This part is covered by the Fox Shocks Warranty.
