Diode Dynamic SS3 White LED Fog Light Kit for 2007-2018 Wrangler JK, 2018-2025 Wrangler JL & 2020-2025 Gladiator JT
Features
- Direct replacement for Jeep Wrangler JK, Wrangler JL & Gladiator JT fog lamps
- SAE-compliant road-legal output
- Includes round bezel, for factory-style appearance
- Plug and play, no modification needed
- Advanced TIR optics provide high efficiency and focus
- Durable powdercoated aluminum die-cast
- Engineered and Assembled in USA
Overview
Overview. Upgrade the fog lights on your Jeep Wrangler (JK/JL) or Gladiator (JT) with the SS3 Fog Light Bracket Kit! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included round bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter!
Plug and Play. Thanks to custom-molded brackets, the SS3 Fog Light Bracket Kit can be installed on your Jeep in minutes. Simply remove your factory fog light assembly and these will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed!
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.
From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.
SAE Fog uses Diode Dynamic's distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. When installed as a pair and aimed in accordance with your state's regulations, the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.
Backlight Functionality. The SS3 LED Pod features a distinctive backlight, in a brilliant amber color. This integrated backlight gives you an additional accent light, along with the main beam. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.
Sport, Pro, or Max. Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs, and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
In the Box:
Plastic Bumper, JL Wrangler Sport (Type MS Kit)
- Two (2) SS3 3” Round LED Pods
- Two (2) Type MS Mounting Brackets
- Two (2) 5202 DT Adapters
- Mounting Hardware
Plastic Bumper, JK Wrangler or JL Wrangler/ JT Gladiator (Non-Sport) (Type M Kit)
- Two (2) SS3 3” Round LED Pods
- Two (2) Plastic Type M Mounting Brackets
- Two (2) 9006 DT Adapters
- Two (2) 5202 DT Adapters
- Two (2) Backlight Tap Wire Kit
- Mounting Hardware
Steel Bumper (Type MR Kit)
- Two (2) SS3 3” Round LED Pods
- Two (2) Plastic Type M Base Mounting Brackets
- Two (2) Steel Type MR Mounting Brackets
- Two (2) 9006 DT Adapters
- Two (2) 5202 DT Adapters
- Hardware
| Lens Color/Optics | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Measured Output (lumens) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|---|

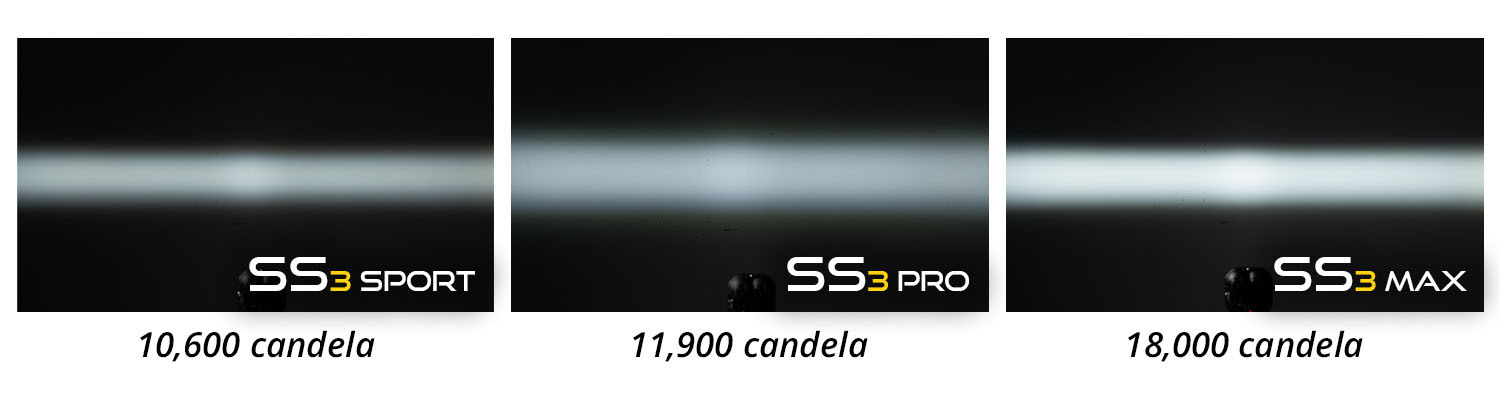

| Fog White Sport | 10,600 cd | 106 lux | 1,520 lm | 2,262 lm | 6000K White |
| Fog White Pro | 11,900 cd | 119 lux | 3,000 lm | 5,796 lm | 6000K White |
| Fog White Max | 18,000 cd | 180 lux | 3,500 lm | 7,920 lm | 6000K White |
Versions:
Item # DD7060 - Sport Version for Base Sport Bumper on Wrangler JL/Gladiator JT
Item # DD7044 - Sport Version for Plastic Bumper on Wrangler JK or Wrangler JL/Gladiator JT (Non-Sport)
Item # DD7052 - Sport Version for Mopar Steel Bumper
Item # DD7063 - Pro Version for Base Sport Bumper on Wrangler JL/Gladiator JT
Item # DD7047 - Pro Version for Plastic Bumper on Wrangler JK or Wrangler JL/Gladiator JT (Non-Sport)
Item # DD7055 - Pro Version for Mopar Steel Bumper
Item # DD7065 - Max Version for Base Sport Bumper on Wrangler JL/Gladiator JT
Item # DD7049 - Max Version for Plastic Bumper on Wrangler JK or Wrangler JL/Gladiator JT (Non-Sport)
Item # DD7057 - Max Version for Mopar Steel Bumper
